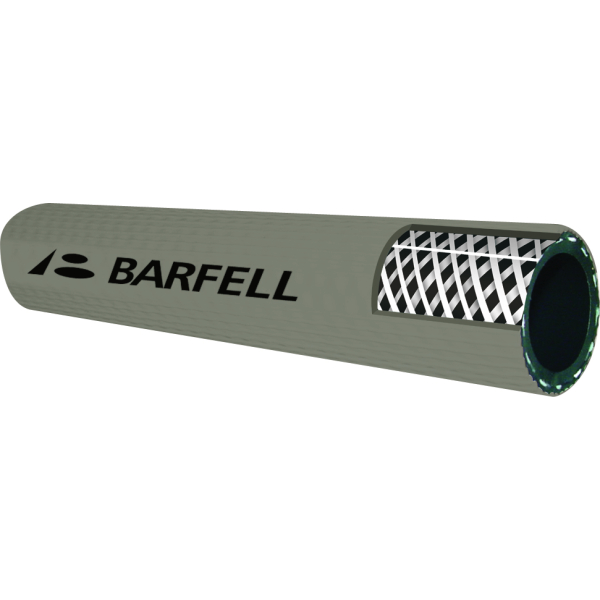

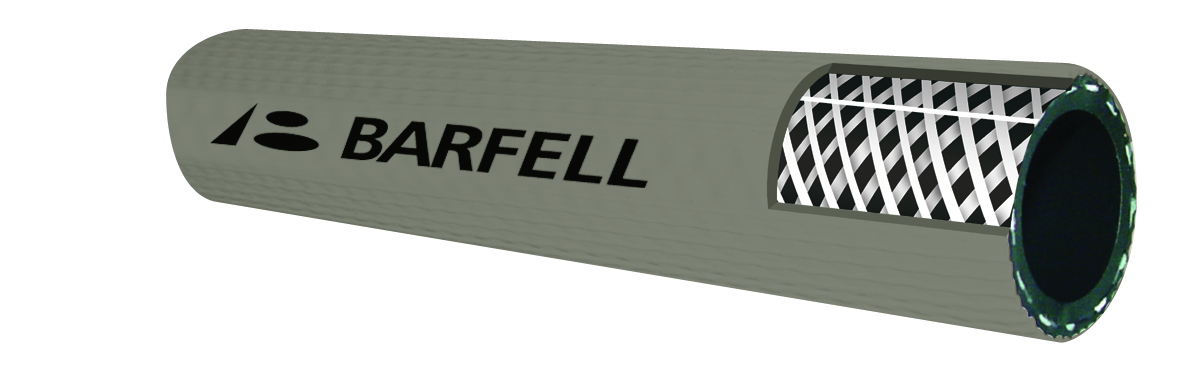

Description
For flexible gas connections to fixed and portable appliances.- Conforms: to AS1869
- Inner wall: Black
- Outer wall: Beige
| Nominal in mm’s | Working Pres. @ 20oC | Burst Pres. @ 20oC | ||||||
| Barfell Product Code | I.D | O.D | MPA | PSI | MPA | PSI | Weight Kg/m | Coil lengths in M |
| 231493 | 6.4 | 12.8 | 2.6 | 375 | 10.4 | 1,500 | 0.13 | LPG 20, 100 |
| 231071 | 8 | 15.0 | 1.3 | 180 | 5.0 | 725 | 0.17 | Class A 20, 100 |
| 231084 | 10 | 18.5 | 2.6 | 375 | 10.4 | 1,500 | 0.26 | Class C 20, 100 |
