Description

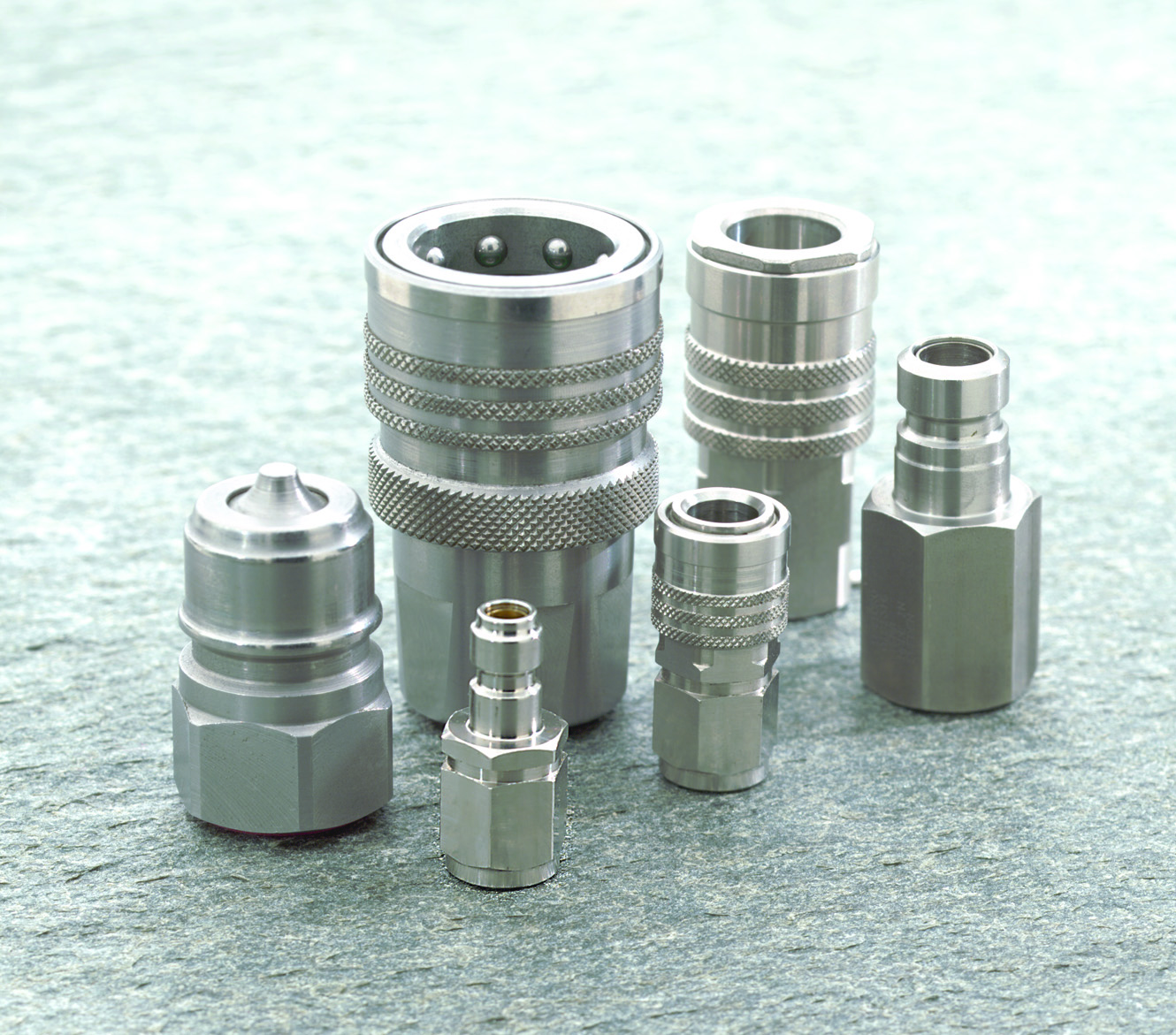

Hydraulic Quick Release Self Sealing Coupling for high-pressure systems are suitable for Hydraulic oils as well as other fluids and gases. The coupling are self-sealing two way coupling of high quality with outstanding characteristics.
- Vinton Working Temp: -25°C up to +200°C
- Approval: AISI 316
Coupling & Adaptors are valved and have viton seals.
| Description |
Size in inches |
Unoflow Product Code |
Barfell Product code |
Working pressure Connected in Bar |
Weight in Grams |
Tema Interchange Part No. |
| Coupling Body 1/4″ BSPF |
1/4 |
T251013EV |
276012 |
250 |
145 |
2510RV |
| Plug In Adaptor 1/4 ” BSPF |
1/4 |
T252013EV |
276016 |
250 |
45 |
2520RV |
| Coupling Body 3/8 ” BSPF |
3/8 |
T381017EV |
276058 |
300 |
205 |
3810RV |
| Plug In Adaptor 3/8 ” BSPF |
3/8 |
T382017EV |
276064 |
300 |
57 |
3820RV |
| Coupling Body 1/2″ BSPF |
1/2 |
T501021EV |
276108 |
300 |
305 |
5010RV |
| Plug In Adaptor 1/2 ” BSPF |
1/2 |
T502021EV |
276114 |
300 |
93 |
5020RV |
| Coupling Body 3/4″ BSPF |
3/4 |
T751026EV |
276156 |
250 |
510 |
7510RV |
| Plug In Adaptor 3/4 ” BSPF |
3/4 |
T752026EV |
276162 |
250 |
190 |
7520RV |
| Coupling Body 1″ SPF |
1 |
T1001033EV |
276206 |
250 |
900 |
10010RV |
| Plug In Adaptor 1″ BSPF |
1 |
T1002033EV |
276212 |
250 |
338 |
10020RV |
