Description

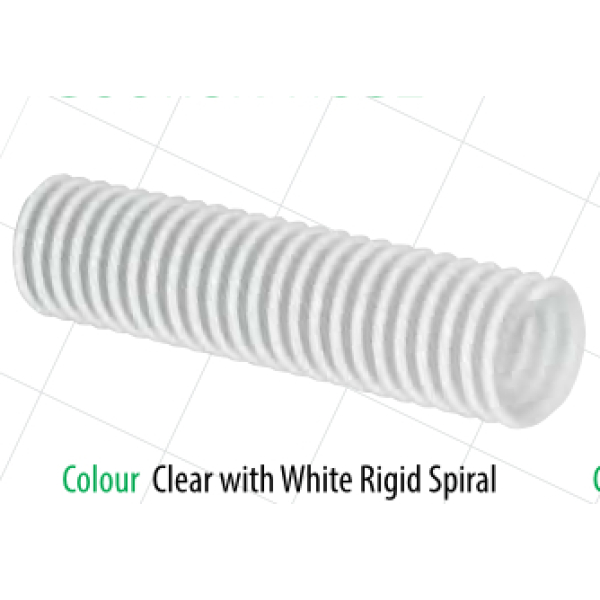

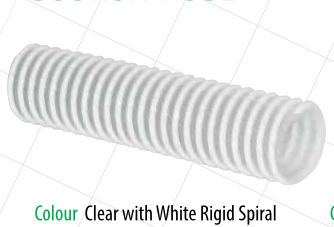

An extremely flexible hose with outstanding abrasion resistance due to the inclusion of urethane rubber. Barfell’s latest and best hose for seeding equipment, soil and rock removal on vacuum diggers and street sweepers and any particulate collection in extreme environments.- Colour: Clear with White Rigid Spiral
- Temperature Range: -5°C to +60°C
- Chemical Resistance: Excellent
- Flexibility: Excellent
- Abrasion Resistance: Excellent
- Weathering Properties: Excellent
| Nominal in mm’s | Working Pres. @ 20oC | |||||||
| Barfell Product Code | I.D | O.D | Vacuum Rating KPa/20oC | Mpa | P.S.I | Weight Kg/m | Min Bend Radius in mm | Coil Lengths in Metres |
| 206684 | 32 | 41.5 | -90 | 0.3 | 43.5 | 0.39 | 250 | 20 |
| 206686 | 38 | 48.4 | -90 | 0.3 | 43.5 | 0.45 | 310 | 20 |
| 206690 | 50 | 64.5 | -80 | 0.3 | 43.5 | 0.76 | 350 | 20 |
| 206691 | 63 | 77.0 | -70 | 0.3 | 43.5 | 1.46 | 370 | 20 |
| 206692 | 75 | 95.0 | -70 | 0.3 | 43.5 | 1.77 | 400 | 20 |
| 206693 | 102 | 118.0 | -70 | 0.3 | 43.5 | 3.48 | 500 | 20 |
| 206694 | 127 | 150.0 | -70 | 0.3 | 43.5 | 5.70 | 550 | 10,20 |
| 206695 | 150 | 174.0 | -60 | 0.3 | 43.5 | 6.63 | 600 | 10,20 |
| 206696 | 203 | 224.0 | -60 | 0.3 | 43.5 | 10.59 | 650 | 10,20 |
