Description

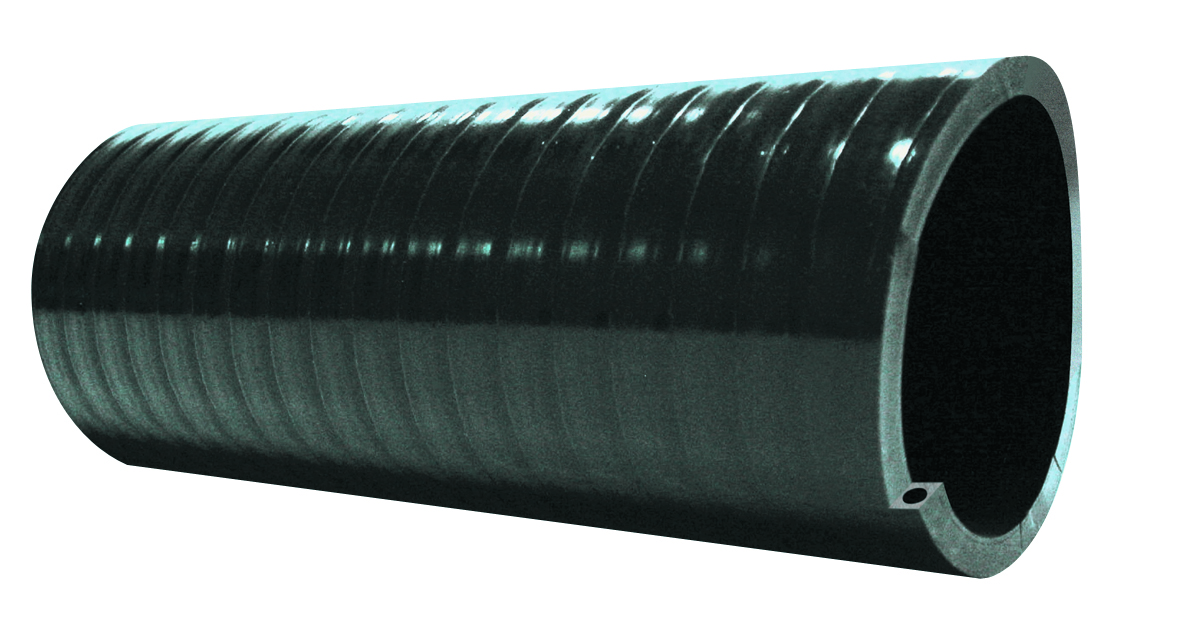

A medium duty suction/discharge hose. Extremely flexible and lighter weight product for the less demanding applications.- Applications Collection of waste on environmental waste trucks, pumping the contents of grease pits, sewage collection, pumping of fuels, lubricants and most chemicals.
- Colour Black
- Temperature Range -5°C to +60°C
- Chemical Resistance Excellent
- Flexibility Excellent
- Weathering Properties Good
- Abrasion Resistance Good
| Nominal in mm’s | Working Pres. @ 20oC | |||||||
| Barfell Product Code | I.D | O.D | Vacuum Rating KPa/20oC | Mpa | P.S.I | Weight Kg/m | Min Bend Radius in mm | Coil Lengths in Metres |
| 206380 | 19.3 | 24.9 | -90.0 | 0.65 | 95 | 0.26 | 40 | 20 |
| 206382 | 25.2 | 32.0 | -90.0 | 0.65 | 95 | 0.41 | 65 | 20 |
| 206384 | 31.8 | 39.0 | -90.0 | 0.65 | 95 | 0.54 | 100 | 20 |
| 206386 | 38.4 | 46.2 | -90.0 | 0.55 | 80 | 0.70 | 150 | 20 |
| 206388 | 50.8 | 60.0 | -90.0 | 0.45 | 65 | 1.07 | 190 | 20 |
| 206390 | 63.7 | 74.1 | -90.0 | 0.45 | 65 | 1.50 | 230 | 20 |
| 206392 | 76.0 | 89.0 | -90.0 | 0.45 | 65 | 2.25 | 330 | 20 |
| 206393 | 102.2 | 116.0 | -90.0 | 0.40 | 60 | 3.04 | 520 | 20 |
