Description

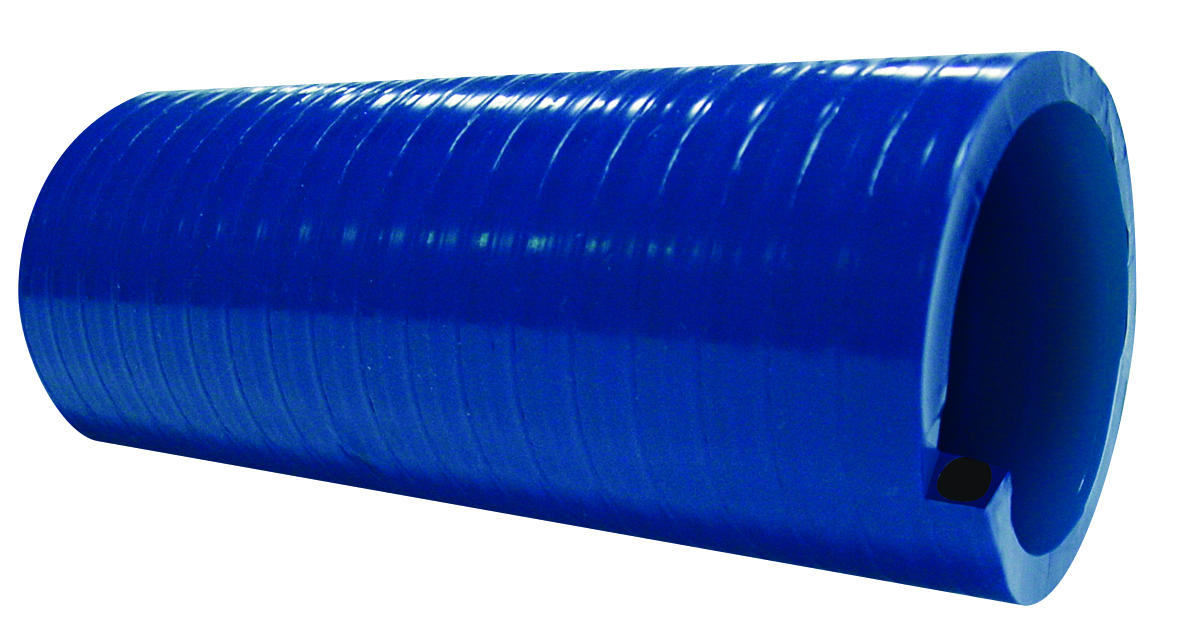

An extremely flexible, thick walled suction/ delivery hose with outstanding resistance to hydrocarbon based chemicals, including diesel fuel, petrol, fuel oil greases and lubricants. Smooth bore ensures maximum pumping efficiency.- Applications Collection of waste on environmental waste trucks, pumping the contents of grease pits, sewage collection, pumping of fuels, lubricants and most chemicals.
- Colour Dark Blue
- Temperature Range -5°C to +60°C
- Chemical Resistance Excellent
- Flexibility Excellent
- Weathering Properties Good
- Abrasion Resistance Excellent
| Nominal in mm’s | Working Pres. @ 20oC | |||||||
| Barfell Product Code | I.D | O.D | Vacuum Rating KPa/20oC | Mpa | P.S.I | Weight Kg/m | Min Bend Radius in mm | Coil Lengths in Metres |
| 206800 | 25.2 | 34.0 | -90.0 | 0.7 | 100 | 0.55 | 80 | 20 |
| 206810 | 31.8 | 41.0 | -90.0 | 0.7 | 100 | 0.70 | 120 | 20 |
| 206820 | 38.4 | 48.0 | -90.0 | 0.6 | 85 | 0.87 | 180 | 20 |
| 206830 | 50.8 | 62.0 | -90.0 | 0.5 | 75 | 1.33 | 220 | 20 |
| 206840 | 63.7 | 76.0 | -90.0 | 0.5 | 75 | 1.81 | 270 | 20 |
| 206850 | 76.0 | 90.0 | -90.0 | 0.5 | 75 | 2.44 | 350 | 20 |
| 206860 | 102.2 | 117.0 | -90.0 | 0.4 | 60 | 3.41 | 550 | 20 |
| 206880 | 150.0 | 170.0 | -90.0 | 0.35 | 52 | 6.73 | 980 | Made to order |
